Learning Objectives
By the end of this comprehensive guide, provided by an experienced profile extrusion company, you will have acquired a thorough understanding of extrusion blow molding film processes, enabling you to operate equipment efficiently, troubleshoot common issues, and optimize production quality.
Specifically, successful completion of this learning module will empower you to identify and explain all components of blow film extrusion systems, demonstrating knowledge that any reputable profile extrusion company would expect from qualified personnel.
- Differentiate between various blow film processes and recognize their appropriate applications
- Calculate and determine correct extrusion parameters for different materials and film specifications
- Perform proper setup and calibration of blow molding equipment as taught by leading profile extrusion company professionals
- Analyze film properties and make necessary process adjustments to meet quality standards
- Troubleshoot common defects with effective solutions developed by expert profile extrusion company engineers
- Implement proper safety protocols throughout all stages of the extrusion process
These objectives align with industry standards established by leading manufacturers and the most innovative profile extrusion company operations, ensuring that your knowledge will be immediately applicable in professional production environments.
Learning Path Progression
Equipment Familiarization
Understand all system components and functions
Process Parameters
Master temperature, speed, and pressure settings
Material Science
Learn about resin properties and behavior
Quality Control
Implement testing and inspection protocols
Troubleshooting
Develop problem-solving capabilities
Work Tasks
The daily operations involved in extrusion blow molding film production encompass a wide range of technical tasks that require precision, knowledge, and attention to detail. As any experienced profile extrusion company will confirm, mastering these tasks is essential for maintaining efficiency, quality, and safety in production environments.
Before initiating production, operators must perform thorough equipment inspections, checking for any signs of wear, damage, or misalignment. This preventive maintenance approach, recommended by every reputable profile extrusion company, helps identify potential issues before they lead to production delays or defective products.
Pre-Production Tasks
- Verify resin specifications and prepare material batches according to formulation requirements
- Calibrate temperature controllers, pressure gauges, and thickness measurement devices
- Install and align appropriate die, ensuring proper centering and clearance
During production, operators monitor key process variables continuously, making adjustments as needed to maintain product specifications. This active supervision, a hallmark of quality-focused profile extrusion company operations, involves regular sampling and testing of film properties.
In-Process Tasks
- Monitor melt temperature, die pressure, and cooling system performance
- Adjust air ring settings to control bubble stability and cooling rate
- Maintain proper tension throughout the haul-off and winding processes
- Perform regular quality checks for thickness, width, clarity, and mechanical properties
Post-production tasks ensure that equipment is properly shut down, cleaned, and prepared for subsequent runs. Following these procedures, as outlined in standard operating manuals from any professional profile extrusion company, extends equipment life and prevents cross-contamination between different materials or colors.
Work Task Schedule
Equipment inspection, material preparation, safety check
Heating system activation, parameter setup, initial adjustments
Continuous monitoring, quality checks, minor adjustments
Material change, die cleaning, parameter resetting
System cooling, equipment cleaning, maintenance log updates
Task Frequency Chart

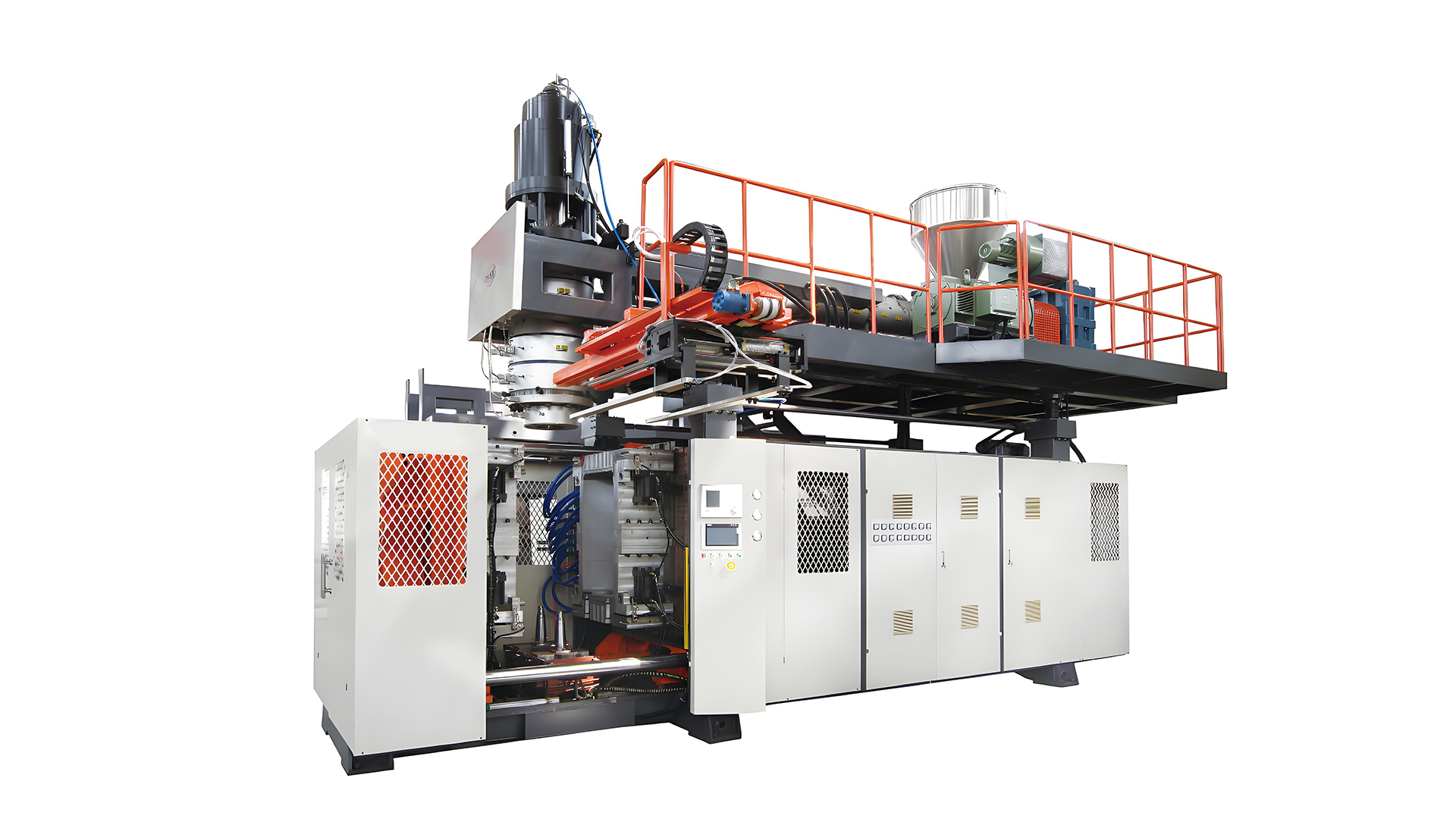

Blow Molding Film Equipment Composition
The extrusion blow molding film system is a complex integration of specialized components working in harmony to transform plastic resin into high-quality film products. A leading profile extrusion company will typically offer complete turnkey systems comprising all essential elements, each designed to perform specific functions within the production process.
The heart of the system is the extruder, which melts, compresses, and conveys the plastic material. Modern extruders, as supplied by any innovative profile extrusion company, feature precision-engineered barrels and screws designed for optimal melting efficiency and uniform熔体 distribution.
Key System Components
Extruder Unit
Consists of a motor drive system, gear reducer, barrel, and screw. The screw design varies according to material type and processing requirements, with different sections for feeding, compressing, and metering the resin. A reputable profile extrusion company will provide screws specifically engineered for each application.
The barrel features multiple heating zones with precise temperature controls, ensuring proper melting without thermal degradation of the polymer. Cooling fans or water jackets prevent overheating in the feed section.
Die Assembly
The die is critical for forming the initial tube (parison) of molten plastic. Most blow film dies are of the spiral mandrel design, which ensures uniform material distribution around the circumference. Die lips can be adjusted to control thickness variations, a feature emphasized by quality-focused profile extrusion company manufacturers.
Cooling System
Includes an air ring that delivers controlled cooling air to the exterior of the bubble, and often an internal bubble cooling (IBC) system for cooling the interior. Proper cooling is essential for maintaining bubble stability and achieving desired film properties, as any experienced profile extrusion company engineer will confirm.
Collapsing Frame & Haul-Off
The collapsing frame guides and flattens the bubble into a double-layered film sheet. The haul-off unit pulls the film at a controlled speed, determining the final thickness in conjunction with the extruder output rate. Synchronization between these components is crucial, a technical detail prioritized by leading profile extrusion company systems.
Winder
The winder collects the finished film into rolls of specified length or diameter. Modern winders feature tension control systems to ensure uniform roll quality and prevent wrinkling or stretching of the film.
Equipment Component Diagram
Equipment Sizing Considerations
When selecting equipment, factors include desired film width, thickness range, production speed, and material types. A knowledgeable profile extrusion company can help determine the optimal system configuration for specific production requirements.
Matching Extruder with Die
Properly matching extruder capabilities with die requirements is fundamental to achieving optimal production results in blow film manufacturing. This critical engineering step, often overlooked by less experienced operators but emphasized by every professional profile extrusion company, ensures efficient material processing, consistent film quality, and maximized equipment lifespan.
The key to successful matching lies in understanding the throughput capabilities of the extruder and how they align with the material requirements of the die. A mismatch can result in excessive pressure, inadequate melt quality, or inefficient production rates, all issues that a reputable profile extrusion company would address during system design.
Critical Matching Parameters
- Throughput capacity (kg/hour) of the extruder must match die requirements
- Melt pressure ratings must be compatible to prevent equipment damage
- Material viscosity characteristics influence both extruder and die performance
- Die diameter should be appropriate for the extruder size and film width requirements
Extruder size is typically designated by screw diameter, ranging from small laboratory models (20-30mm) to large production machines (150mm or more). Each size has a characteristic throughput range that must be matched to the die's capabilities. As any expert profile extrusion company will advise, operating an extruder at too low or too high a percentage of its maximum capacity can lead to quality issues.
Die design and size must correspond to both the extruder output and the desired film dimensions. Wider film requires larger die diameters, but these must be paired with extruders capable of delivering sufficient material volume. The experienced engineers at a leading profile extrusion company can calculate the exact requirements based on film width, thickness, and production speed.
Material considerations play a significant role in matching extruder and die. High-viscosity materials may require more powerful extruders with specialized screws, while low-viscosity resins might need different die configurations to prevent excessive back pressure. A knowledgeable profile extrusion company will provide guidance on material-specific equipment requirements.
Modern computer modeling tools, utilized by advanced profile extrusion company operations, can simulate the interaction between extruder and die, predicting pressure profiles, melt flow characteristics, and potential problem areas before actual production begins. This technology enables precise matching and optimization of components.
Extruder-Die Matching Chart
| Extruder Size (mm) | Typical Throughput (kg/h) | Recommended Die Diameter (mm) | Max Film Width (m) | Common Materials |
|---|---|---|---|---|
| 30-45 | 5-30 | 50-150 | 0.5-1.5 | LDPE, LLDPE |
| 50-65 | 25-80 | 100-250 | 1.0-3.0 | PE, PP, EVA |
| 70-90 | 60-150 | 200-400 | 2.0-5.0 | PE, PP, PA |
| 100-120 | 120-300 | 300-600 | 3.0-7.0 | PE, PP, barrier films |
| 130+ | 250-600+ | 500-1000+ | 5.0-10.0+ | Heavy-duty PE, laminates |
Pressure vs. Throughput Relationship
This chart provides general guidelines. For specific applications, consult with a specialized profile extrusion company to ensure optimal equipment matching based on your exact material and production requirements.
Blow Molding Film Forming Process
The extrusion blow molding film process transforms plastic resin into continuous thin films through a series of precisely controlled stages. Mastery of this process, as taught by experienced profile extrusion company technicians, requires understanding each step and how variables interact to affect the final product quality.
The process begins with material preparation, where plastic resin – typically in pellet form – is dried if necessary to remove moisture that could affect film quality. As any reputable profile extrusion company will emphasize, proper material handling and preparation are foundational to successful production.
Process Stages in Detail
Extrusion & Melting
Resin is fed into the extruder hopper, entering the barrel where it is conveyed forward by the rotating screw. As the material progresses through the barrel, it is heated by external heaters and through shear friction, gradually melting into a uniform molten mass. The screw design – with feed, compression, and metering zones – ensures proper melting and pressure development. Modern profile extrusion company systems feature sophisticated temperature control for precise melt management.
Parison Formation
The molten plastic is forced through the die, which shapes it into a continuous tube called a parison. The die's design, particularly critical for uniform wall thickness, determines the initial tube dimensions. A specialized profile extrusion company will offer dies with precision adjustments to control material distribution.
Bubble Inflation
Air is injected into the center of the parison through the die mandrel, causing it to expand into a bubble. The amount of air determines the final film width, while the haul-off speed controls the thickness. The blow-up ratio (final bubble diameter divided by die diameter) typically ranges from 2:1 to 4:1, though some processes use higher ratios. Expert profile extrusion company technicians can recommend optimal ratios for specific applications.
Cooling
As the bubble rises, it is cooled by air from the air ring, which blows controlled air around the exterior. Some systems also use internal bubble cooling (IBC) for more efficient heat removal. Proper cooling, a key focus area for any quality profile extrusion company, is essential for maintaining bubble stability and achieving the desired film properties.
Collapsing & Sizing
The cooled bubble passes through a collapsing frame, which flattens it into a double-layered sheet. This frame must be properly aligned to prevent wrinkling. The haul-off unit pulls the film at a constant speed, precisely controlling the final thickness.
Winding
The final step involves winding the film onto rolls under controlled tension. Proper winding, as emphasized by leading profile extrusion company experts, ensures uniform roll quality and prevents defects like telescoping or wrinkling.
Throughout the process, various parameters including temperatures, pressures, speeds, and air flows must be precisely controlled and coordinated. Advanced systems from a modern profile extrusion company feature computerized controls with recipe storage, allowing for quick changeovers and consistent production runs.
Process Parameter Optimization
Key Process Variables
Process Flow Diagram
Common Faults & Troubleshooting
Despite careful setup and operation, various defects can occur during blow film production. Recognizing these issues and implementing effective solutions is a critical skill developed through training and experience, often provided by a specialized profile extrusion company with years of industry expertise.
Many common defects can be traced to improper process parameters, equipment misalignment, or material issues. A systematic approach to troubleshooting, taught by leading profile extrusion company professionals, involves identifying the defect, understanding its possible causes, and implementing targeted solutions.
Thickness Variations
Non-uniform thickness is one of the most common issues in blow film production. It can appear as circumferential variations (gauge bands) or axial variations along the length of the film.
Potential Causes:
- • Improper die lip adjustment
- • Uneven heating in the extruder or die
- • Screw speed fluctuations
- • Material viscosity variations
Solutions:
- • Adjust die lip bolts to compensate for thick areas
- • Verify and calibrate temperature controls
- • Check for worn extruder components causing speed variations
- • Ensure consistent material feeding and blend uniformity
Bubble Instability
A unstable bubble can manifest as wandering, oscillation, or collapse, often resulting in wrinkled film or production interruptions.
Potential Causes:
- • Inadequate cooling or uneven cooling air distribution
- • Excessive melt temperature
- • Improper haul-off tension
- • Drafts or air currents in the production area
Solutions:
- • Adjust air ring settings and check for blockages
- • Reduce melt temperature if possible
- • Optimize haul-off speed and tension settings
- • Install barriers to prevent air currents around the bubble
Optical Defects
Haze, gels, or die lines can affect the clarity and appearance of the film, making it unsuitable for certain applications.
Potential Causes:
- • Inadequate melt temperature or mixing
- • Contaminants in the material or equipment
- • Die buildup or damage to die lips
- • Improper cooling rates
Solutions:
- • Optimize temperature profile for complete melting
- • Implement strict material handling and equipment cleaning procedures
- • Clean die thoroughly and inspect for damage
- • Adjust cooling system for proper crystallization control
Many profile extrusion company specialists recommend maintaining a detailed troubleshooting log to track recurring issues and their solutions. This documentation helps identify patterns and can lead to permanent process improvements.
Preventive maintenance, another key practice emphasized by leading profile extrusion company operations, can significantly reduce the occurrence of production defects. Regular equipment inspection, cleaning, and calibration minimize unexpected issues and ensure consistent quality.
Troubleshooting Guide
Film Wrinkling
- • Uneven bubble collapse
- • Misaligned collapsing frame
- • Variations in film thickness
- • Incorrect tension settings
- • Adjust air ring for uniform cooling
- • Realign collapsing frame components
- • Calibrate die for uniform thickness
- • Optimize winding tension
Poor Sealing Properties
- • Incorrect melt temperature
- • Contamination in resin
- • Overcooling of film surface
- • Incompatible material formulation
- • Adjust temperature profile
- • Improve material handling and storage
- • Modify cooling settings
- • Consult with profile extrusion company for material recommendations
Bubble Breakage
- • Excessive haul-off tension
- • Weak spots due to thickness variations
- • Material degradation
- • Inadequate melt strength
- • Reduce haul-off speed or adjust tension
- • Correct thickness profile issues
- • Lower melt temperature or reduce residence time
- • Modify material formulation or add processing aids
Troubleshooting Flowchart
Further Reading
To deepen your understanding of extrusion blow molding film processes and stay current with industry advancements, exploring additional resources is highly recommended. Many leading profile extrusion company organizations publish technical papers, case studies, and application guides that provide valuable insights into specialized techniques and innovations.
Academic journals focusing on polymer science and plastics engineering offer in-depth analysis of material behavior, process dynamics, and quality control methodologies. These publications often feature research conducted in collaboration with industry leaders, including prominent profile extrusion company researchers working on cutting-edge developments.
Recommended Resources
"Extrusion Blow Molding: Principles and Practice"
By John R. Wagner Jr. and James L. White
Comprehensive textbook covering all aspects of blow molding technology, including detailed sections on film extrusion processes and equipment design.
"Plastics Extrusion Technology Handbook"
Published by the Society of Plastics Engineers
An authoritative reference covering all extrusion processes, with extensive chapters on blow film production, troubleshooting, and quality control.
Journal of Plastic Film & Sheeting
Published by SAGE Publications
Peer-reviewed journal featuring research on film properties, processing techniques, and applications. Many articles are co-authored by profile extrusion company engineers and scientists.
Industry associations such as the Society of Plastics Engineers (SPE) and the Plastics Industry Association (PIA) offer technical conferences, workshops, and online courses focused on blow film extrusion. These events provide opportunities to learn from experts and network with professionals from leading profile extrusion company operations worldwide.
Many equipment manufacturers and profile extrusion company specialists provide technical bulletins, application notes, and case studies on their websites. These resources often contain practical information on optimizing specific processes, solving unique challenges, and implementing new technologies.
Online forums and professional networks dedicated to plastics processing can be valuable sources of practical knowledge, where operators and engineers share their experiences, tips, and solutions to common and uncommon problems encountered in blow film production.
Additional Learning Resources
Webinars & Online Courses
- • "Advanced Blow Film Troubleshooting" - SPE
- • "Material Selection for Film Applications" - PIA
- • "Process Optimization for Sustainable Film Production" - Leading profile extrusion company
Industry Standards & Guidelines
- • ASTM D882 - Standard Test Method for Tensile Properties of Thin Plastic Sheeting
- • ISO 11423 - Plastics films and sheeting - Determination of thickness
- • ANSI/SPI BB-1.1 - Blow Molding Design Guidelines
Technical Papers
- • "Numerical Simulation of the Blow Film Process" - Journal of Polymer Engineering
- • "Effect of Processing Parameters on Polyethylene Film Properties" - Polymer Testing
- • "Innovations in Die Design for Improved Film Uniformity" - Presented at ANTEC by profile extrusion company engineers
